Product Description:
CHEN LIFT launched a range of fully oil-free machines ,comprising vertical mast lifts with no hydraulic oil
Standard Configuration:
▲Proportional Joystick Control
▲Forklift Slot
▲Drivable At Full Height
▲Emergency Stop Button both on PLatform and Ground
▲Electric Lifting Push Rod
▲AC Motor Driving
▲Fault Diagnose System
▲Dual Wheel with 0 Turning Radius
▲Manual Emergency Descent System
▲Pothole Protection；Break Release；Zero Emissions
Optional Configuration:
▲AC Power to PLatform
▲Platform Working Light
▲Extension Platform
▲Platform Positioning Laser Lights
▲Overloading Sensor
▲Wireless Tracking
▲Saloon-door Style Entry Gates/Top Open Door
▲Electric Picking Tray with Foldable Side Panels and Front Guardrails
Specification:
| Model | MD570 |
| Platformform Capacity | 200kg |
| Extension Platform Capacity | 113kg |
| Max Platform Height-A | 5.7m |
| Max Working Height | 7.7m |
| Platform Length-B | 1.5m |
| Platform Width-C | 0.78m |
| Extension Length | 0.5m |
| Overall Height(Unfold Guardrail)-D | 1.99m |
| Overall Length(With Ladder)-E | 1.62m |
| Overall Width-F | 0.8m |
| Wheelbase-G | 1.28m |
| Ground Clearance(Raised)-H | 0.08m |
| Ground Clearance(Stowed)-I | 0.02m |
| Travel Speed(Stowed) | 3.5km/h |
| Travel Speed(Raised) | 0.6km/h |
| Turning Radius | 0.6m/1.8m |
| Maximum Working Slope | 1.5°/3° |
| Wheel | Φ305*100mm |
| Power Source | 2*12V/100AH |
| Charger | 100-240VAC/15A |
| Weight | 1105kg |
Company Introduction:
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Product Tags:
|
|

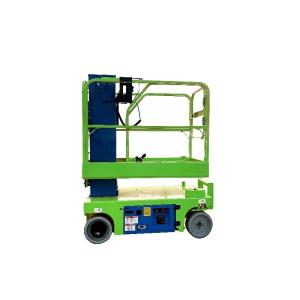

MD570 Oil Free Self Propelled Lift Fully Electric Vertical Lift Images
|
